Home Products Hydrogen Module
Under-Sink · Hydrogen Water

Home Hydrogen Water
System for Modern Households

A home hydrogen water system produces hydrogen-rich drinking water directly from your kitchen faucet — using electrolysis technology, on demand, without bottles.

What is molecular hydrogen water? Water that contains dissolved molecular hydrogen gas (H₂) — the smallest molecule in nature — at concentrations measurable in parts per billion (ppb), studied for its selective antioxidant properties.
Up to 1,500 ppb H₂ −600 mV ORP Neutral pH Under-sink install
Request pricing Installation guide
ALPHA Home Hydrogen Water System — module and smart faucet installed under kitchen sink
1,500 ppb H₂
−600 mV ORP
7.0 Neutral pH

System overview

What Is a Home Hydrogen Water System?

A home hydrogen water system is a residential water treatment solution designed to infuse purified drinking water with molecular hydrogen gas (H₂) using electrolysis — producing hydrogen-rich water at the point of use, on demand.

1

Water Purification Filter

Removes chlorine, sediment, and impurities before hydrogen infusion begins

2

Hydrogen Generator Module

SPE/PEM electrolysis cell — splits water molecules to release dissolved H₂ gas

3

Hydrogen Infusion Chamber

Dissolves and stabilizes H₂ concentration before water reaches the faucet

Unlike bottled hydrogen water or portable generators, a home system produces fresh hydrogen-rich water continuously — which matters because H₂ gas dissipates when exposed to air over time.

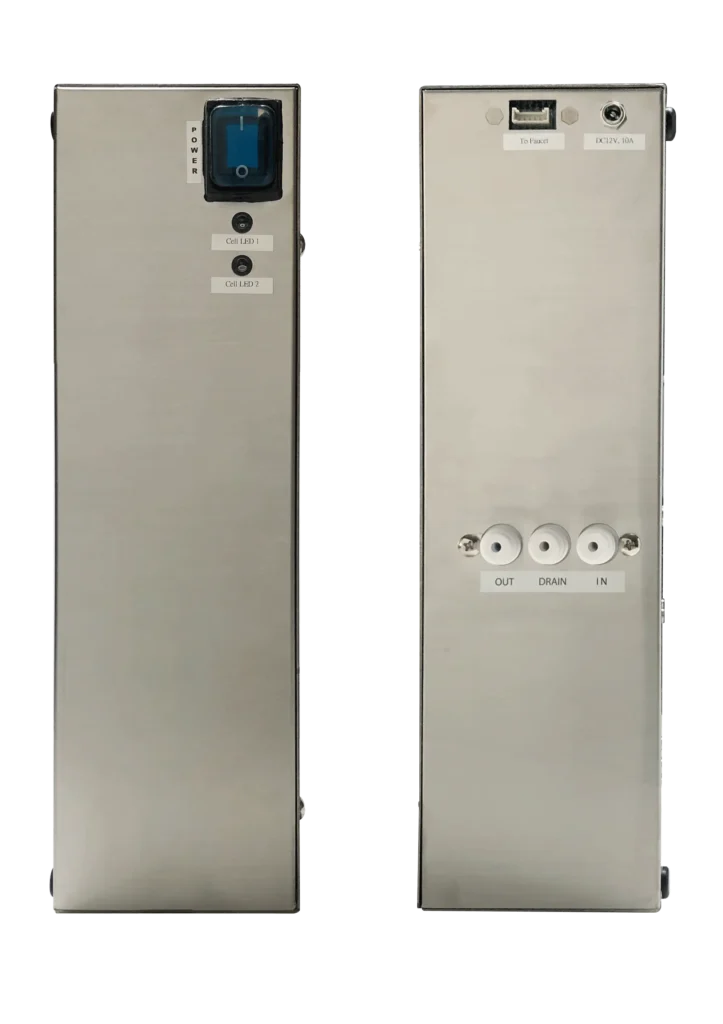

ALPHA Hydrogen Water Module HWS-2000

ALPHA Hydrogen Water Module
HWS-2000

How Does a Home Hydrogen Water System Produce H₂?

The core process is electrolysis — a method using a small electrical current to split water molecules into their components. Three stages work in sequence:

Step 1

Filtration

Tap water passes through a pre-filter — removing chlorine, sediment, and impurities before entering the electrolysis cell

Step 2

Electrolysis

A small current at the SPE/PEM membrane splits H₂O into hydrogen (H₂) and oxygen (O₂) — oxygen is vented out

Step 3

Infusion

H₂ gas dissolves back into the purified water at up to 1,500 ppb — dispensed fresh through the smart faucet

Why fresh generation matters: Hydrogen gas gradually escapes from water when exposed to air. Generating H₂ at the point of use — directly from your faucet — delivers consistently higher concentrations than bottled hydrogen water that may have been stored for days or weeks.

Peer-reviewed evidence

What Does the Research Say About Molecular Hydrogen Water?

Over 1,000 peer-reviewed studies have explored molecular hydrogen in the context of oxidative stress, metabolic health, and recovery. Here is a summary of what the evidence currently supports.

Key findings from published research

H₂ acts as a selective antioxidant — neutralizing harmful hydroxyl radicals without disrupting beneficial reactive oxygen species
Human trials report reduced oxidative stress markers and improved quality-of-life scores in hydrogen water consumers
H₂ is the smallest known molecule — able to cross cell membranes and the blood-brain barrier where larger antioxidants cannot
Research areas include sports recovery, metabolic health, inflammation, neurology, and aging science

NCBI · PMC Review

Molecular hydrogen as a selective therapeutic antioxidant

A review published by the National Center for Biotechnology Information describes H₂ as a promising selective antioxidant. The review notes that molecular hydrogen targets cytotoxic hydroxyl radicals without eliminating reactive oxygen species that play beneficial roles in cellular signaling.

Read on PubMed

Medical Gas Research

Hydrogen-rich water and quality-of-life outcomes

A study published in Medical Gas Research reported measurably improved quality-of-life outcomes in participants consuming hydrogen-rich water over a controlled period — including effects on fatigue, oxidative stress markers, and subjective wellbeing compared to placebo.

Read study

NIH · Ongoing Research

How H₂ gas interacts with biological systems

Research tracked by the National Institutes of Health continues to explore mechanisms by which H₂ gas interacts with mitochondrial function, inflammatory signaling pathways, and cellular redox balance. The field is growing rapidly, with new studies published regularly across multiple disciplines.

Search PubMed
The research on molecular hydrogen water is growing and promising, but is not at the stage where specific health claims can be made with the certainty of established medicine. These products are not intended to diagnose, treat, cure, or prevent any disease. Consult a qualified physician if you have a health condition.

Product overview

What Is the ALPHA Hydrogen Water Module?

A compact under-sink hydrogen water generator — permanently installed, connecting directly to your existing plumbing, producing hydrogen-rich water on demand from a dedicated smart faucet.

1,500

ppb H₂ max concentration

−600

mV ORP antioxidant potential

7.0

pH neutral, balanced water

The module connects under the sink to most water supply systems. It transforms filtered water into hydrogen-rich drinking water through advanced SPE/PEM electrolysis technology.

ORP (Oxidation-Reduction Potential) — measured in millivolts (mV), it indicates water's capacity to act as a reducing agent. A reading of −600 mV is significantly antioxidant compared to standard tap water at +100 to +400 mV.

Unlike alkaline water ionizers, the hydrogen module produces neutral-pH water (7.0) — making it suitable for all household uses, including preparing infant formula and taking medication.

ALPHA Hydrogen Water Module — under-sink installation

ALPHA Hydrogen Water Module

Why Choose the ALPHA Hydrogen Water Module?

Six reasons the ALPHA module stands out compared to portable hydrogen devices and bottled hydrogen water options.

High H₂ Concentration

Up to 1,500 ppb

Achieves research-relevant H₂ levels consistently at point of dispensing — not diminished by storage or transport delay.

Strong ORP Performance

Up to −600 mV

Negative ORP indicates reducing (antioxidant) capacity. A 700–1,000 mV difference from standard tap water is a significant measurable change.

Neutral pH Water

pH 7.0

Safe for all household uses — suitable for infant formula, medication, and cooking without pH-related concerns.

Universal Compatibility

RO · UF · Mineral · Tap

Works with reverse osmosis, UF filters, mineral filters, or direct tap supply. No new plumbing required in most kitchens.

Compact Under-Sink Design

Space-saving

Installed out of sight under the sink. Nothing on the counter. A dedicated smart faucet above provides instant access.

Premium Smart Faucet Included

Solid brass

Solid brass construction with modern design — ergonomic, corrosion-resistant, and compatible with any kitchen aesthetic.

Premium dispensing

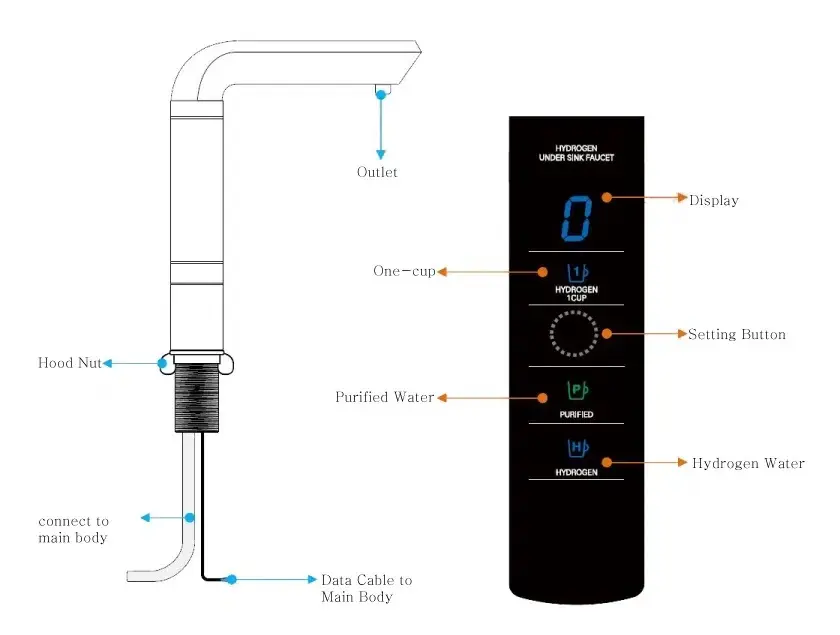

What Makes the ALPHA Smart Faucet Different?

Every ALPHA Hydrogen Water Module includes a dedicated dispensing faucet — engineered to deliver hydrogen-rich water without compromising H₂ concentration at the point of use.

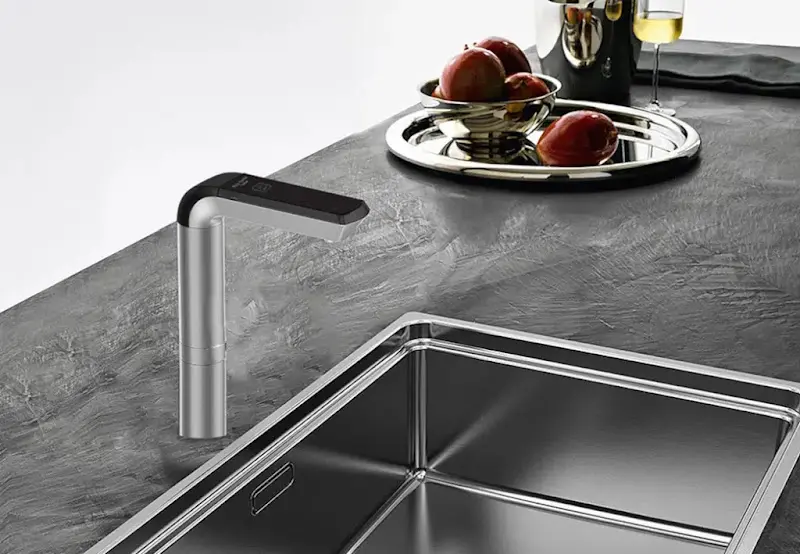

ALPHA Smart Faucet — solid brass, modern design

Solid brass construction

Long-term corrosion resistance. No plastic in the water path — preserving both purity and H₂ concentration.

Modern design, universal fit

Compatible with traditional and contemporary kitchens. Clean lines that complement any sink or countertop.

Ergonomic flow control

Smooth one-hand operation. Consistent water flow — comfortable for all ages and daily use.

Instant hydrogen water access

No waiting, no bottles, no charging. Fresh hydrogen-rich water every time the tap opens.

How Is the ALPHA Module Installed?

Three connection configurations — choose the one that matches your current kitchen setup. Most installations complete in 30–60 minutes.

30–60 min · DIY-friendly

Direct connection to the water supply line

The simplest configuration. The module connects directly to the cold water supply line — no additional filter purchase needed. The module's built-in filter handles pre-treatment before hydrogen infusion begins.

  • Cold water supply line → hydrogen module inlet
  • Module outlet → smart faucet via dedicated tubing
  • No extra filter required
  • Suitable for municipal tap water with low sediment
Direct water supply connection diagram
30–60 min · DIY-friendly

Connection to a UF or mineral pre-filter system

If you already have a UF (ultrafiltration) or mineral filter installed, the module connects downstream — receiving pre-filtered water for hydrogen infusion. This preserves natural mineral content while adding dissolved H₂.

  • Cold water supply → existing UF / mineral filter
  • Filter output → hydrogen module inlet
  • Module outlet → smart faucet
  • Mineral ions (Ca²⁺, Mg²⁺) retained in output water
UF or mineral filter connection diagram
45–60 min · Plumber optional

Connection to an RO (reverse osmosis) system

The module connects after an existing RO system, using highly purified RO output as feedwater. This produces ultra-pure hydrogen-rich water. A remineralization filter between RO and module is optional but recommended for taste.

  • Cold water supply → RO system (existing)
  • RO output → optional remineralization filter
  • → hydrogen module → smart faucet
  • Best for households with serious contamination concerns
RO system connection diagram

FAQ

Frequently Asked Questions About Hydrogen Water Systems

Hydrogen-rich water contains dissolved molecular hydrogen gas (H₂) — the smallest molecule in existence — at concentrations measured in parts per billion (ppb). H₂ is studied for its selective antioxidant properties: it can neutralize harmful hydroxyl radicals without interfering with beneficial cellular signaling. Because of its small size, H₂ can cross cell membranes and the blood-brain barrier — access that larger antioxidant molecules cannot achieve.
The system filters incoming tap water, then passes it through an SPE/PEM electrolysis cell. A small electrical current splits H₂O molecules into hydrogen (H₂) and oxygen (O₂). Oxygen is vented out while H₂ dissolves back into the purified water — dispensed fresh through the dedicated smart faucet at up to 1,500 ppb.
Current research indicates hydrogen water is generally considered safe for regular consumption. H₂ is a naturally occurring gas already present in trace amounts in the gut. Published human studies — including long-term trials — have not reported adverse effects in otherwise healthy adults. If you have a specific health condition or take medication, consult your physician before making dietary changes.
Many published studies use concentrations between 800 ppb and 1,600 ppb. The ALPHA module produces up to 1,500 ppb — within this research-relevant range. Concentration is best measured at the point of consumption, as H₂ gas dissipates over time in open containers.
Yes. H₂ is a gas and gradually escapes from water when exposed to air — particularly in open containers. This is why fresh generation at home is more effective than bottled hydrogen water stored for days or weeks. Drink water soon after dispensing to maximize H₂ concentration. Tight-capped bottles slow dissipation significantly.
Yes. The ALPHA module supports three configurations: direct tap supply, downstream of a UF or mineral filter, or downstream of a reverse osmosis (RO) system. Most installations complete in 30–60 minutes without requiring a plumber.
Alkaline water has elevated pH (typically 8.5–10.5), produced by concentrating mineral ions through electrolysis. Hydrogen water contains dissolved H₂ gas at neutral pH (~7.0). The ALPHA module produces neutral-pH hydrogen water — not alkaline water. For households wanting both alkaline and hydrogen water, a full water ionizer (Alpha 1700 or U1700) is the more complete solution.
High-quality SPE/PEM modules are designed for years of continuous operation. The pre-filter stage requires periodic replacement — typically every 6 months for an average household — to maintain optimal H₂ output. The electrolysis module itself is a long-life component that does not require routine replacement under normal use conditions.
DO

Reviewed by Daniel Oh — Export Director, BioNatural Co., Ltd.

30+ years in functional water technology · Hydrogen water & ionizer specialist · Incheon, Korea

Get started

Request pricing & technical specs

The ALPHA Hydrogen Water Module is available for wholesale and B2B distributors. ISO certified · Korean-engineered · 30+ years export experience.

  • ISO certified manufacturing
  • Response within 24 hours
  • FOB & CIF pricing available
  • OEM options available
Request wholesale pricing
Installation guide H2CAP Plus

User experiences

What Users Say About the ALPHA Hydrogen System

"Excellent quality — works perfectly as advertised. No ozone or chlorine smell, just pure hydrogen water. The compact design fits neatly under the sink and the smart faucet looks great."

EJ

Ellen Johnson

Director of Commercial Operations

"Generates up to 1,500 ppb consistently. I feel more energized through the day and notice noticeably better recovery after workouts. Now a permanent part of our household routine."

MS

Mark Smith

Director of Marketing · Health & Wellness

"The visible hydrogen bubbles when dispensing are satisfying to see — and the water tastes noticeably cleaner. Safe, pure H₂ with no side effects after 6 months of daily use."

DM

Daniel Millington

Brand & Creative Specialist

Also worth considering

Looking for portable hydrogen, a full ionizer, or under-sink alkaline water? These products complement or expand what the hydrogen module offers.

H2CAP Plus portable hydrogen water bottle

Portable · Hydrogen Water

H2CAP Plus

Up to 1,600 ppb in 3 minutes. USB-C rechargeable. Screws onto any standard bottle — ideal for travel and gym use.
Alpha 1700 counter-top water ionizer

Counter-top · Water Ionizer

Alpha 1700

Full ionizer — alkaline, acidic & hydrogen-rich water. pH 2.5–11.5 · ORP −800 mV · 9 water types · 3 colors.
Alpha U1700 under-sink water ionizer

Under-sink · Water Ionizer

Alpha U1700

Hidden under the sink. Dedicated faucet. pH 2.5–11.5 · ORP −800 mV · Best for permanent home setup.
